Grand Prix Legends (GPL)
Easy Installation Guide v2.0 [English]

06/2019 by Stefan Roess


1.    GPL Installation
1.1.    GPLPS GPL Installer
1.2.    GPLSecrets (GEM+, iGOR, GPL Setup Manager)
1.3.    Updating GPL
1.4.    GPL 2004 Demo

2.    GPL Mods
2.1.    GPLSecrets (GEM+, iGOR, GPL Setup Manager)
2.2.    Creating a GPL Player
2.3.    Installation of GPL Mods
2.4.    GEM+ and GPL Settings

3.    Recommended GPL Updates and Patches
3.1.    4 GB Patch
3.2.    Force Feedback v2 (FFB2) Patch
3.3.    60 FPS Patch
3.4.    Lee's GPL Motorworks Patches
3.5.    Spa67

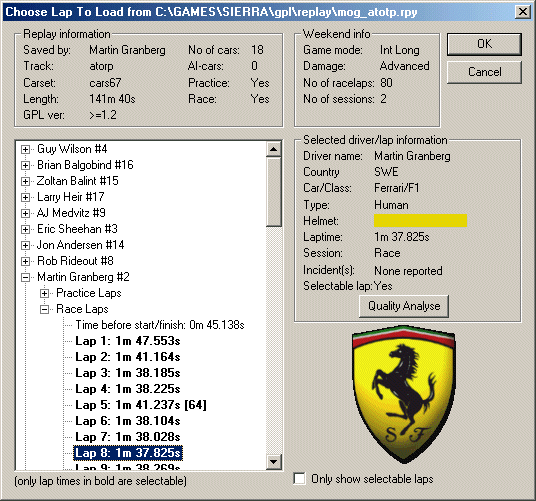

3.6.    GPL Replay Analyzer (GPLRA)

4.    GPL Links

FILESIZEDOWNLOAD
GPL Easy Installation Guide GER v2.0 [German Version]4,3 MB

GPL Easy Installation Guide ENG v2.0 [English Version]4,3 MB

1.    GPL Installation

1.1.    GPLPS GPL Installer


GPL runs on modern PC systems, such as Microsoft Windows 10 (64-bit), Windows 8 (32-bit, 64-bit), Windows 7 (32-bit, 64-bit), Windows Vista (32-bit, 64-bit), as well as under Linux, see SRMZ Forumsthread 1, Forumsthread 2, Forumsthread 3, Forumsthread 4.

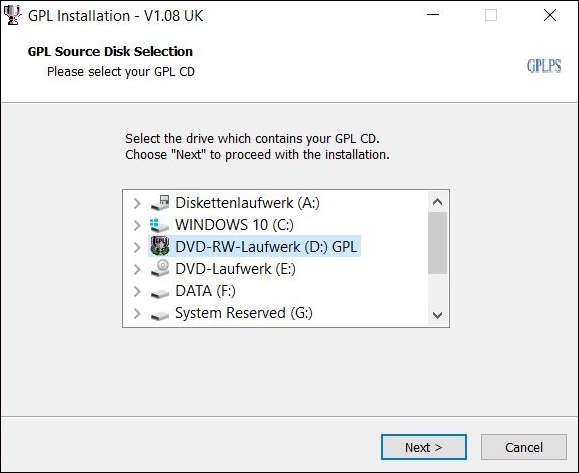

Insert your Grand Prix Legends CD into your CD/ DVD/ Blu-ray drive.
If you don't have a GPL CD please continue reading at "1.4 GPL 2004 Demo".

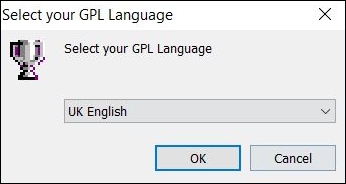

Install the latest version of the GPLPS GPL Installer Beta 1.08:
http://gplps.wordpress.com/gplps-gpl-installer/

Note: The newer installers will default to OpenGL v2 rasterisers. Please be advised that when you first launch GPL and you see the new driver information page please DON’T RELY ON A HARDWARE CURSOR ON TEXT INPUT FIELDS like Driver Name. Simply use the mouse to select it and type in your characters! Or use TAB key to activate but YOU WILL NOT SEE A HARDWARE CURSOR WHEN text input field has focus!

To install on Windows Vista, 7, 8 and Windows 10 you will need administrator rights.

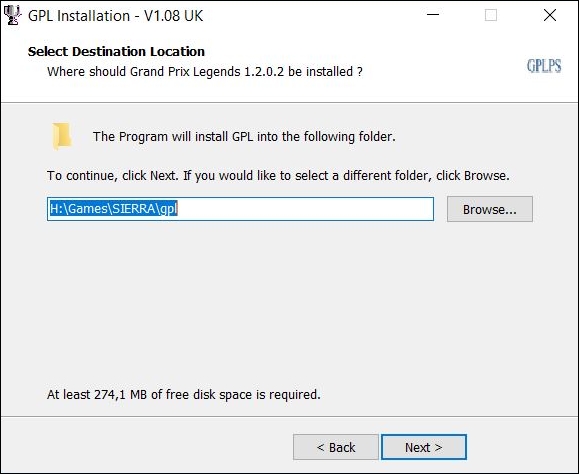

Choose the path where you want to install GPL (standard is C:\Sierra\gpl).
You can install GPL to any directory you like, also to another partition.
If you use Windows 10, 8, 7, Vista and install GPL to the directory
“C:\Program Files (x86)” you need to have administrator rights.

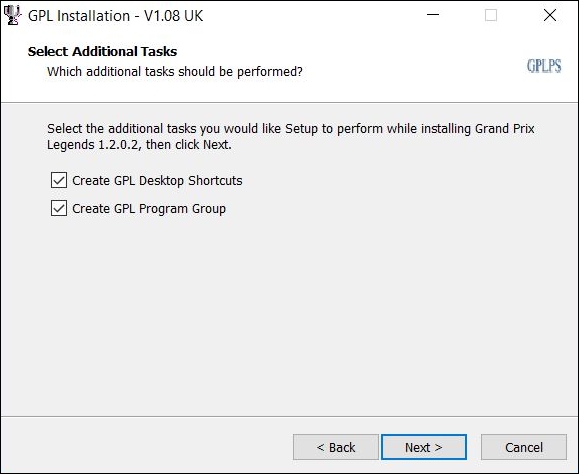

Please restart your PC when prompted to do so!

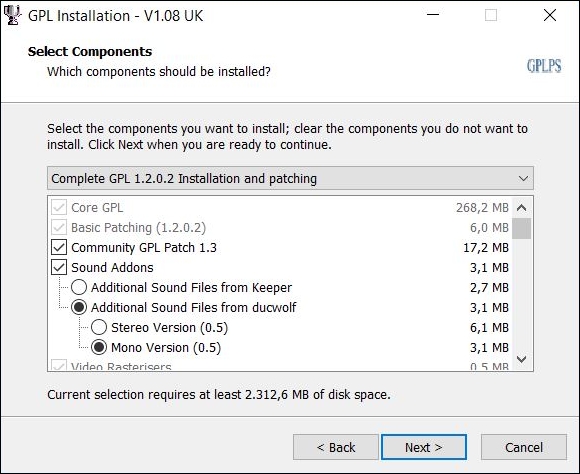

Now you have updated GPL with the official GPL 1.2.0.2 patch, the GPLEA car updates, track updates for all eleven tracks, Carsound patch (for individual car sounds), Bandwidth patch (for enhanced online multiplayer support), newer Rasterisers (OpenGL v2 and Direct3D v2), Pribluda (for enhanced cockpit informations, tire temperatures, sector times, race positions, refresh rates in FPS), as well as the latest GPL 1.3 Community Patch, which also gives you long track support to drive tracks like the Targa Florio and Isle of Man.

Tip: You will find a backup of all installed updates in the “repository“ folder of GPL.

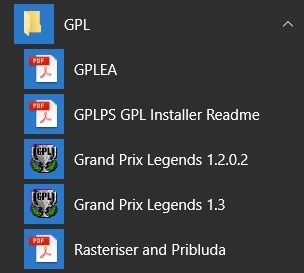

All GPL readme files are available in your Windows start menu at “GPL”.

1.2. GPLSecrets (GEM+, iGOR, GPL Setup Manager)


Install

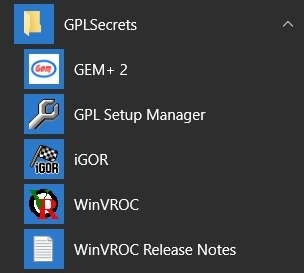

GPLSecrets (GEM+, iGOR, GPL Setup Manager): http://gem.autosimsport.net/
Get the latest version of the GPL Setup Manager here: http://gplmotorworks.gplworld.de/

With GEM+ you can easily adjust GPL settings like sound, layout, graphics, seasons, tracks, etc. outside of GPL. In addition GEM+ patches GPL with the physics of the mods, i.e. without GEM+ you cannot drive GPL mods.
With iGOR you can join GPL online races with up to 20 drivers.
With GPL Setup Manager you can create and modify setups outside of GPL.

  • Do not install GPLSecrets into your GPL installation!
  • You need GEM+ 2.5.32 or higher to run GPL mods!
  • For GEM+ indexing needs to be activated (Windows default setting), because GEM+ needs to access the GPL player profiles!


To show the iGOR racelist you have to enter the new IP. To do this, you must edit the iGOR.ini. Exit iGOR before editing! iGOR must not run while you are editing the iGOR.ini! Because on exit, iGOR updates iGOR.ini with any changes made during runtime, so if you edit it whilst iGOR is running, you'll lose those changes!

Go to the folder
(…\Program Files\GPLSecrets\iGOR\...)

and edit the iGOR.ini file.
Change the old IP to:

[ RaceListServers ]
IP = igor.gplrank.info

Now you should see the iGOR Racelist with all available servers for online races.
If the iGOR Racelist does not appear, restart your PC.

Tip: In your GPLSecrets installation, see (....\GPLSecrets\iGOR\docs\...) for instructions on IGOR as HTML files.



If you have used an older version of the GPLPS GPL Installer than Beta 1.07, please also install:

1967 Update Patch for GPL (67 Patch v1.3 / GPL 1.3 Community Patch):
http://gpltd.bcsims.com/?ir=Mods

Nigel's New Rasterisers v2.5:
http://srmz.net/index.php?app=downloads&showfile=19

1.3 Updating GPL


In case you have an outdated installation of GPL you can use the GPLPS GPL Installer Beta 1.08 to update GPL to the latest level.

Please create a backup of your GPL installation before!
Then you can install the GPLPS GPL Installer Beta 1.08 over your old installation and allow Windows to overwrite existing files.

If you need files of your old GPL backup you can copy them into your updated installation, like for example setups (...\SIERRA\gpl\players\...).

1.4 GPL 2004 Demo


If you are not sure whether GPL is fun for you or if you don't have a GPL CD, you can also use the GPL 2004 Demo to play GPL. The GPL 2004 Demo includes the Watkins Glen track including graphics updates, all GPLEA car updates, Ducwolf's sound updates and is patched with the latest official patch version 1.2.0.2, as well with Nigel Pattinson's Carsound patch.

Download and install the GPL 2004 Demo (82.6 MB):
http://srmz.net/misc/gpl_2004_demo.exe

Download and install Nigel Pattinson's Rasterisers v2.5:
http://srmz.net/index.php?showtopic=3727
Run “gplrast_v2.5.exe” and point to your 2004 Demo folder.

Go to your 2004 Demo folder and find “app.ini”, then open it with Notepad, change “rd3d7v2.dll” to “roglv2.dll” and save. This step is optional. It changes the 3D Rasteriser that the game will use.
Tip: OpenGL v2 rasterisers (“roglv2.dll”) usually give better results than Direct3D v2 rasterisers (“rd3d7v2.dll”). But on some systems OpenGL v2 does not work with GPL so you have to use Direct3D v2. Test what works best on your system.

Download and install the 1967 Update Patch for GPL (67 Patch v1.3 / GPL 1.3 Community Patch): http://gpltd.bcsims.com/?ir=Mods

Important: To use the GPL 2004 Demo with GEM+ and Mods you have to create a new folder in (X:\...\SIERRA\gpl) called "exports" (X:\...\SIERRA\gpl\exports).

Then you have a fully functional GPL installation with the Watkins Glen track and all seven cars. The other ten tracks of the CD are missing. But you can use hundreds of tracks available from the GPL Alternative Track Database (GPLTD): http://gpltd.bcsims.com/
You can also install all GPL mods.


2. GPL Mods

2.1. GPLSecrets (GEM+, iGOR, GPL Setup Manager)


In case you haven`t done yet install
GPLSecrets (GEM+, iGOR, GPL Setup Manager): http://gem.autosimsport.net/
Get the latest version of the GPL Setup Manager here: http://gplmotorworks.gplworld.de/

With GEM+ you can easily adjust GPL settings like sound, layout, graphics, seasons, tracks, etc. outside of GPL. GEM+ additionally patches GPL with each mod's physics. That means that you cannot drive GPL mods without using GEM+.
With iGOR you can join GPL online races with up to 20 drivers.
With GPL Setup Manager you can create and modify setups outside of GPL.

  • Do not install GPLSecrets into your GPL installation!
  • You need GEM+ 2.5.32 or higher to run GPL mods!
  • For GEM+ indexing needs to be activated (Windows default setting), because GEM+ needs to access the GPL player profiles!

To show the iGOR racelist you have to enter the new IP. To do this, you must edit the iGOR.ini. Exit iGOR before editing! iGOR must not run while you are editing the iGOR.ini! Because on exit, iGOR updates iGOR.ini with any changes made during runtime, so if you edit it whilst iGOR is running, you'll lose those changes!

Go to the folder
(…\Program Files\GPLSecrets\iGOR\...)

and edit the iGOR.ini file.
Change the old IP to:

[ RaceListServers ]
IP = igor.gplrank.info

Now you should see the iGOR Racelist with all available servers for online races.
If the iGOR Racelist does not appear, restart your PC.

Tip: In your GPLSecrets installation, see (....\GPLSecrets\iGOR\docs\...) for instructions on IGOR as HTML files.

2.2. Creating a GPL Player


Start GPL via Start -> Programs -> GPL -> Grand Prix Legends 1.3 and create a new player for each mod, e.g.:

Firstname_LastnameLoG     (Legends of GPL Mod/ 20th Anniversary Mod)
Firstname_Lastname55         (1955 Formula 1 Mod)
Firstname_Lastname65         (1965 Formula 1 Mod)
Firstname_Lastname66         (1966 Formula 1 Mod)
Firstname_Lastname67     (1967 Formula 1 Original)
Firstname_Lastname67x    (1967 Formula 1 Extra Mod/ Historical Mod)
Firstname_LastnameF2         (1967 Formula 2 Mod)
Firstname_Lastname69x     (1969 Formula 1 Extra Mod)
Firstname_Lastname69         (1969 Formula 1 Mod)
Firstname_LastnameCA66     (1966 Can-Am Mod)
Firstname_LastnameCA71     (1971 Can-Am Mod)
Firstname_LastnameSC     (1967 Sportscars Mod v2 of 2018)
Firstname_LastnameGT     (1967 Sportscars Mod v1 of 2010)
Firstname_LastnameRX     (Stratos Mod)
Firstname_LastnameTC     (ThunderCars Mod)
Firstname_LastnameN65     (1965 Formula 1 Night Mod)
Firstname_LastnameN67     (1967 Formula 1 Night Mod)

Calibrate your wheel, deactivate all driving assistants, adjust your resolution and activate the Grand Prix race mode in GPL.

GPL chooses for every new created driver the slowest car type “Basic Trainer”. Therefore you should change to the “Grand Prix” race mode in GPL at the track selection menu for all mods.

2.3. Installation of GPL Mods


Please run all installers as administrator (via right click on the installer file)!

You can ask questions about the GPL Mods in the GPL Mods Forum of SRMZ:
http://srmz.net/index.php?showforum=134

In case of technical problems please read here first:
GPL FAQ & Troubleshooting Guide
http://srmz.net/index.php?showtopic=3714

Legends of GPL Mod/
20th Anniversary Edition Mod

http://logpl.gplworld.de/

Race against the championship winning cars from each of the nine major GPL mods that have been made since 1998.

GPL 1955 Mod
http://55f1.gplworld.de/

1955 Track Conversions & Updates by gliebzeit
http://srmz.net/index.php?showforum=189

GPL 1965 Mod

GPL 1965 Mod Installer 2.0.2
and
GPLPS Track Installer for F1 1965 season
http://gplps.wordpress.com/gplps-gpl-installer/

1965 Mod full graphics update 2018 by db312
http://srmz.net/index.php?showtopic=12646

GPL 1966 Mod
http://www.grandprixlegends.co.nf/1966/index.htm
or
http://srmz.net/index.php?app=downloads&showfile=39

66 Patch
http://gpltd.bcsims.com/?ir=Mods

GPL 1967 Extra Mod/ Historical Mod (of 2018)
ONLINE EDITION

http://srmz.net/index.php?showtopic=12389
online racing, hotlapping or race against the AI with a generic carset

GPL 1967 Extra Mod/ Historical Mod (of 2015)
http://srmz.net/index.php?showtopic=11180
realistic 1967 season against the AI

GPL 1967 F2 Mod (1967 Formula 2)
http://f2legends.gplworld.de/

1967 F2 Mod Bug Fixes
http://srmz.net/index.php?showtopic=7536

GPL 1969 Extra Mod
http://srmz.net/index.php?showtopic=6918

The 1969 Extra Mod replaces the 1969 Mod.

GPL 1969 Mod
http://srmz.net/index.php?app=downloads&showfile=40

69 Patch
http://gpltd.bcsims.com/?ir=Mods

The 1969 Extra Mod replaces the 1969 Mod.

GPL 1966 Can-Am Mod
http://canam66.gplworld.de/

Can-Am 1966 Bug Fixes

http://srmz.net/index.php?showtopic=11519

GPL 1971 Can-Am Mod
http://canam71.gplworld.de/

CA71 Patch
http://canam71.gplworld.de/

GPL 1967 Sportscars v2 Mod/
Sportscars Extra/
SC Mod
of 2018

http://sportscars67.gplworld.de/

The Sportscars Extra Mod v2 of 2018 replaces the Sportscars v1 Mod of 2010.

GPL 1967 Sportscars v1 Mod/
GT Mod
of 2010

http://www.sportscarlegends.net/

The Sportscars Extra Mod v2 of 2018 replaces the Sportscars v1 Mod of 2010.

GPL Stratos Mod (RX)
http://srmz.net/index.php?showtopic=5624&st=0

Installation Guide GPL Stratos Mod (RX)
http://srmz.net/index.php?showtopic=5624&st=120#entry110139

GPL ThunderCars Mod (TC)
http://srmz.net/index.php?app=downloads&showfile=41

GPL Night Mod (N65/ N67)
http://srmz.net/sub/ftommi/index.html

Note: Check that the installer points to the right path, like
X:\...\SIERRA\gpl

and not
X:\...\SIERRA\gpl\gpl

2.4. GEM+ and GPL Settings


After installing the mods start GEM+ and close it again and allow GEM+ to save.

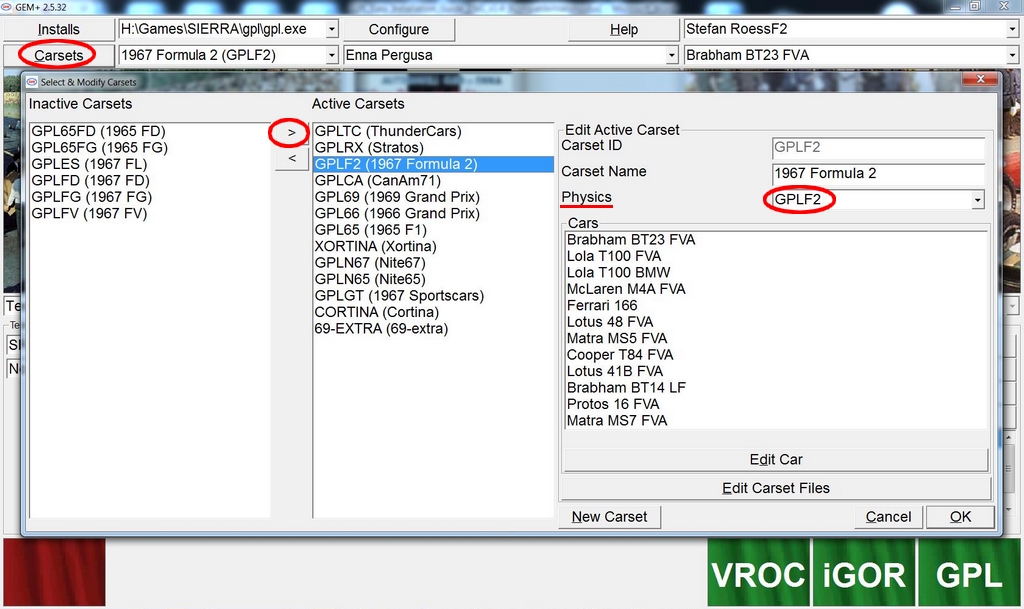

Start GEM+ again and activate the carset of each mod via the button “Carsets“.
Make sure each mod uses the correct physics!

Tip: In case you need a new patched mod .exe (gplc**.exe), just delete your mod .exe (gplc**.exe) in your “gpl” folder and let GEM+ create a new one by closing GEM+.

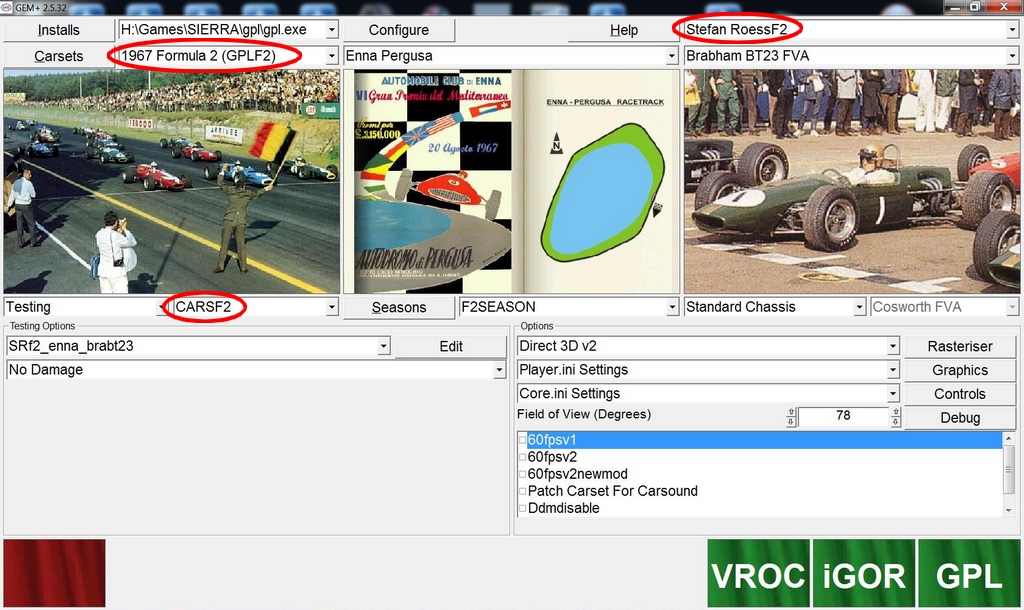

Choose your player for a mod and the carset that belongs to the mod in GEM+.

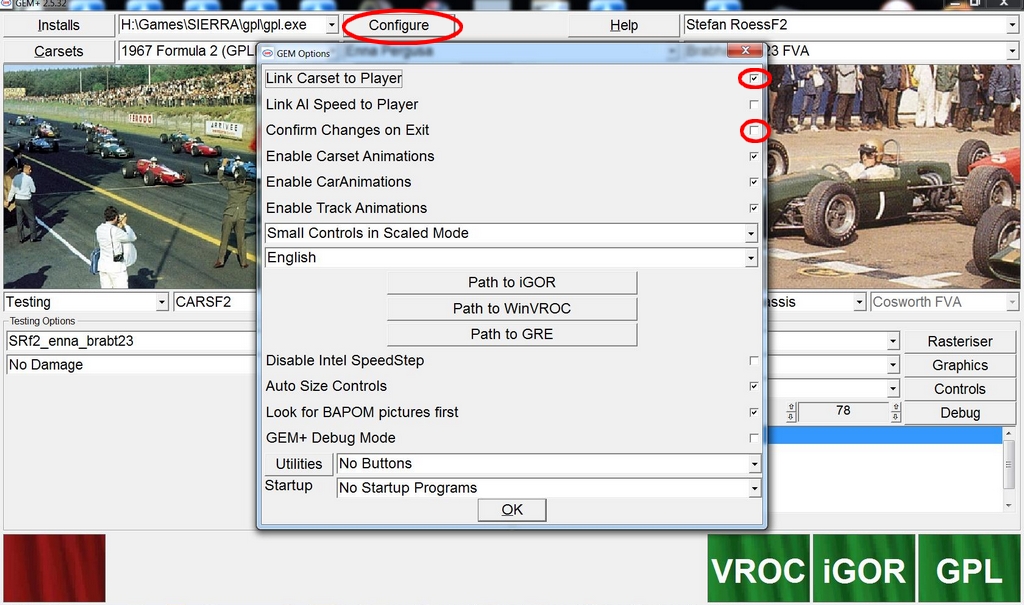

Adjust GEM+ options via the button “Configure“. Check “Link Carset to Player” and uncheck “Confirm Changes on Exit”.

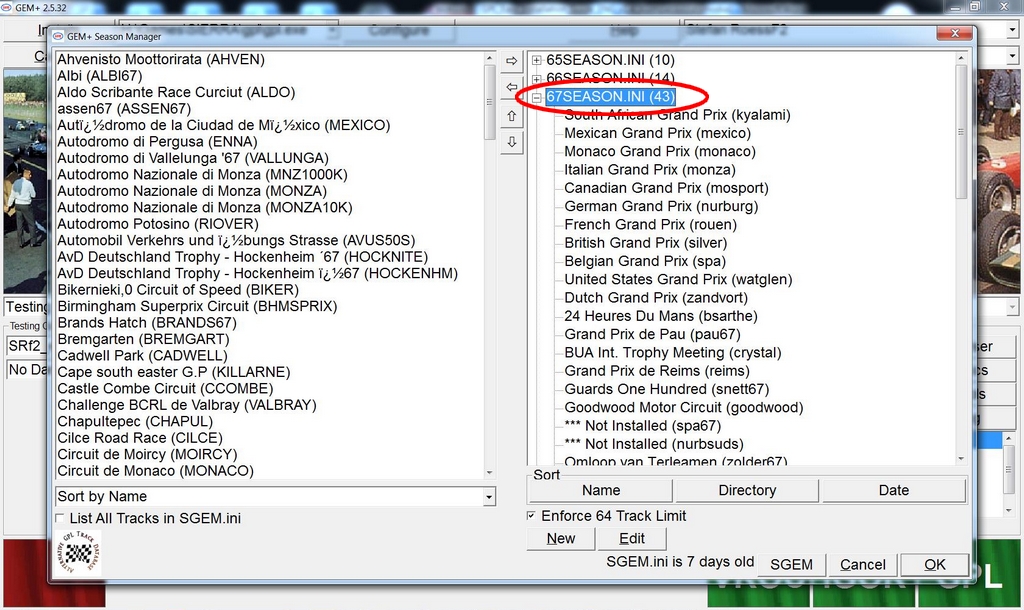

Administrate your tracks and “season.ini“ via the button “Seasons”.


Set your graphics in GEM+ via the button “Rasteriser“ and “Graphics”.

Make sure you use the OpenGL v2 or Direct3D v2 rasteriser as they are needed to run the newer mods and tracks.

Tip: OpenGL v2 rasterisers usually give better results than Direct3D v2 rasterisers. But on some systems OpenGL v2 does not work with GPL so you have to use Direct3D v2. Test what works best on your system.

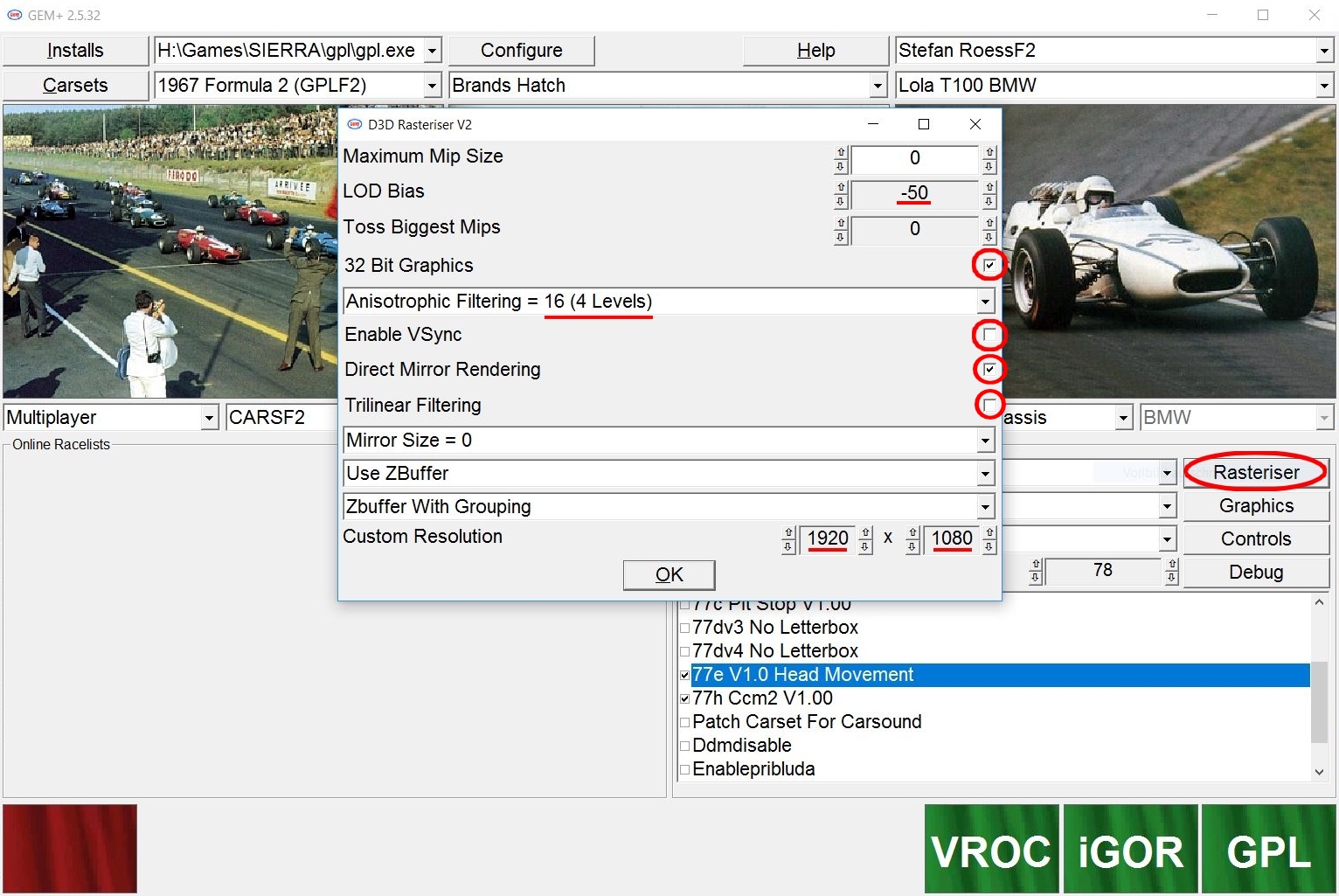

Set the following for GEM+ under "Rasteriser":

  • Set LOD Bias to "-50". Higher values make objects look flickering and blurry in the distance.
  • Check "32 Bit Graphics".
  • Set Anisotrophic Filtering to "16 (4 levels)".
  • Remove the check mark at "Enable VSync" if you are using 36 FPS, otherwise you will have massive FPS (frames per second) drops. But if you use the 60 FPS patch you have to activate "VSync" in GEM+. In the configuration menu of your graphics card, set the 3D settings under "Vertical Synchronization" to "Global Settings". This is the best setting for GPL with 36 FPS and 60 FPS.
  • Check "Direct Mirror Rendering".
  • Remove hook for "Trilinear Filtering.
  • Set "Custom Resolution" according to your optimal monitor resolution.

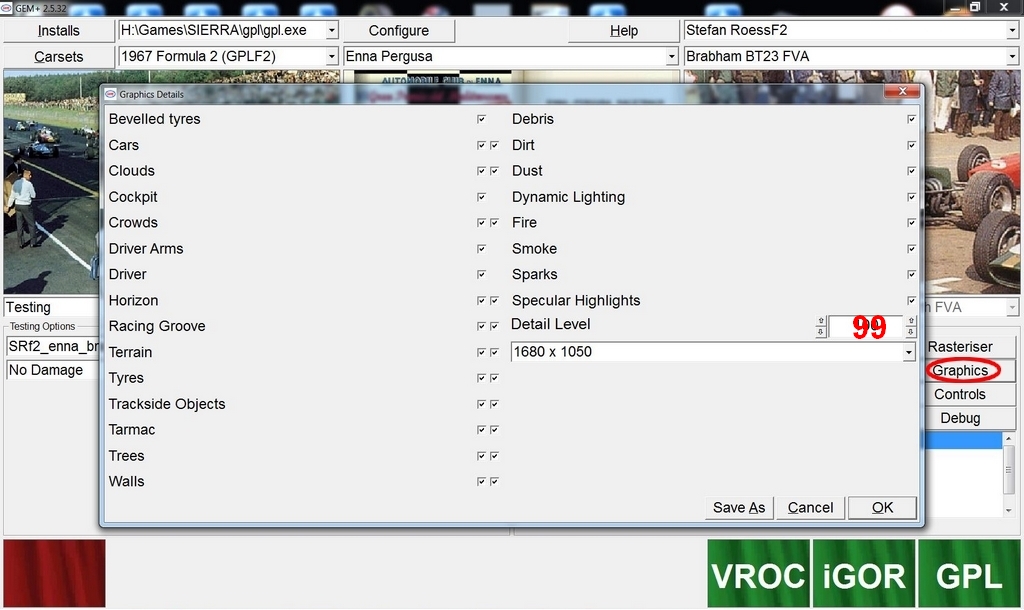

In GEM+ “Graphics settings” set “Detail Level” to 99 or lower, or GPL won`t be able to load all polygons. The detail level steps are:

1)    0
2)    1-24
3)    25-74
4)    75-99 (works best)
5)    100


If you are using an NVIDIA graphics card, I recommend using the NVIDIA Profile Inspector for advanced graphics settings. The Antialiasing Supersampling is e.g. not adjustable in the standard NVIDIA control panel.
https://nvidiaprofileinspector.com/

When this GPL Guide was created, the current version was NVIDIA Profile Inspector 3.5.0.0.

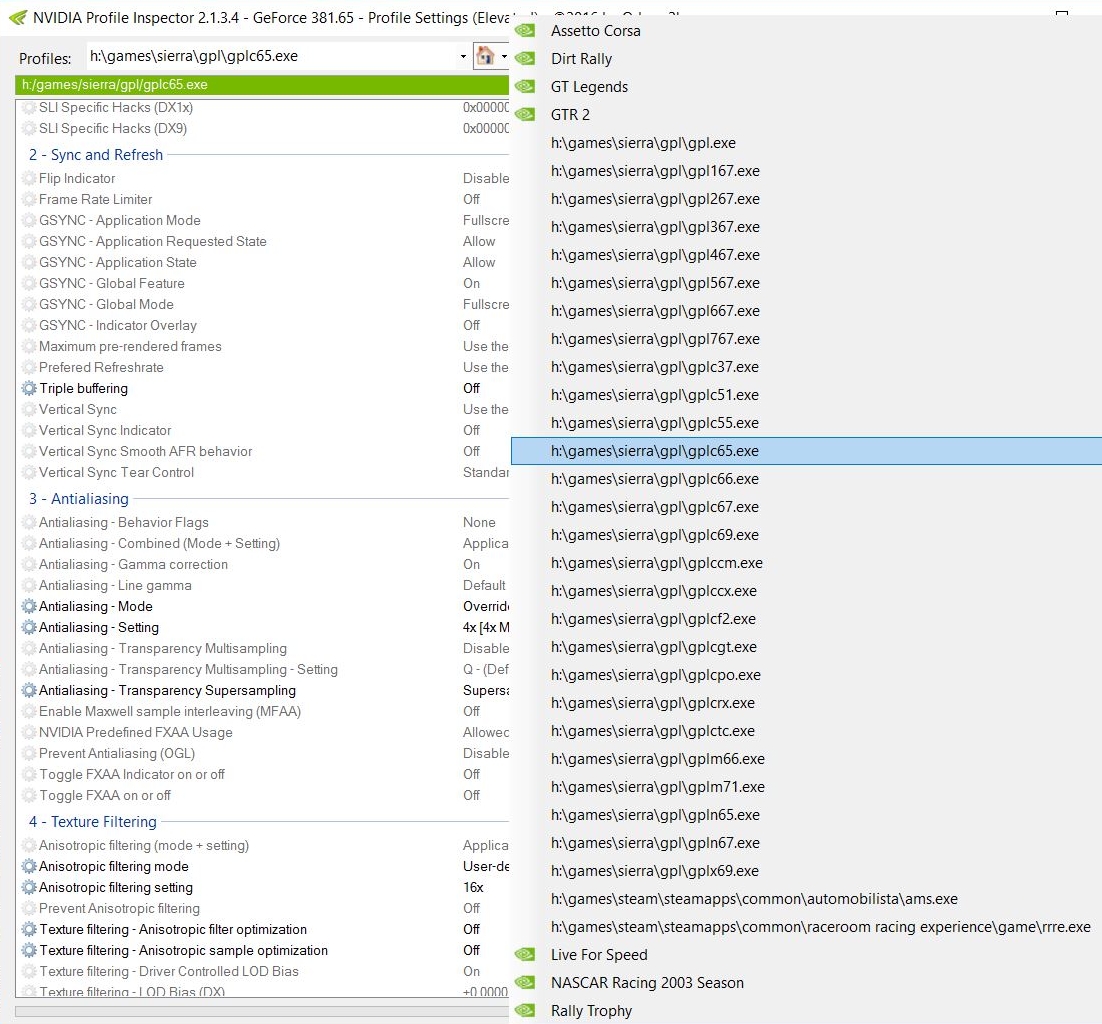

In order to use the NVIDIA Profile Inspector with GPL you have to create a profile for each GPL mod.exe, e.g. for the 65 mod (gplc65.exe). This allows you to use different graphics settings for each mod.

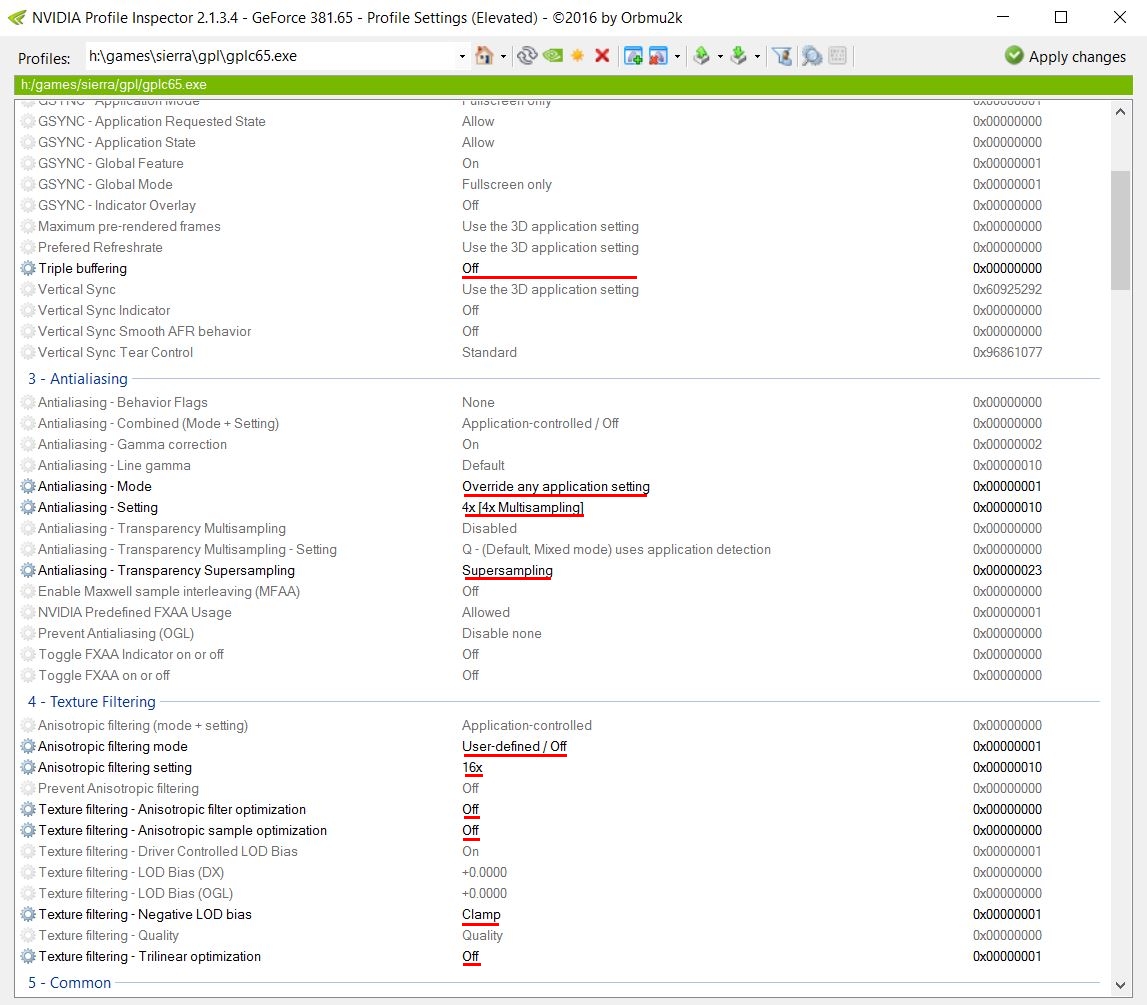

Below you'll first see very moderate graphics settings for a NVIDIA GeForce GTX 970 graphics card, as a compromise between detail and good frame rate for online races with a full starter field.

Raise the values for „Antialiasing – Setting“ and „Antialiasing – Transparency Supersampling“ when you think your PC system can handle it. But do a quick offline test race with a full grid after each value you have changed to see if GPL still runs smoothly with full 36 FPS (frames per second).

Tip: I highly recommend creating a backup of your profiles for NVIDIA Profile Inspector. Click on the button “Export user defined profiles” and choose the option "Export all driver profiles". As it can happen that your profiles are gone after a major Windows 10 update and also after a NVIDIA graphics card driver update.

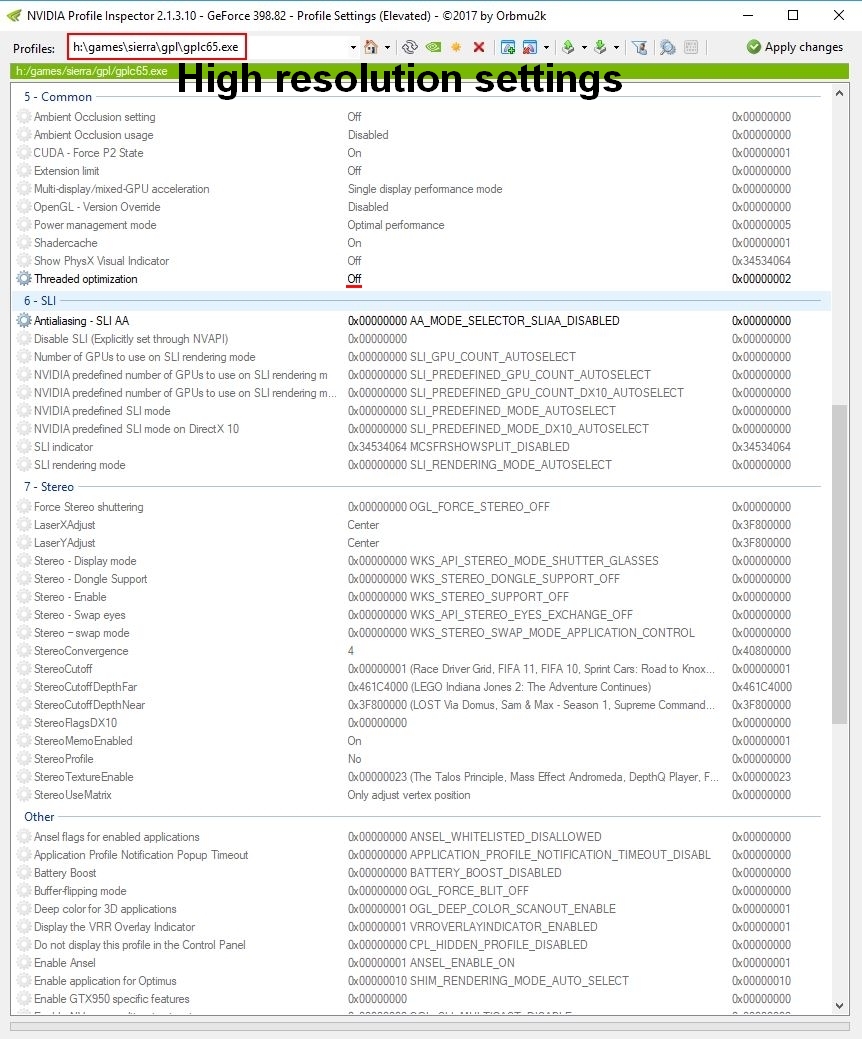

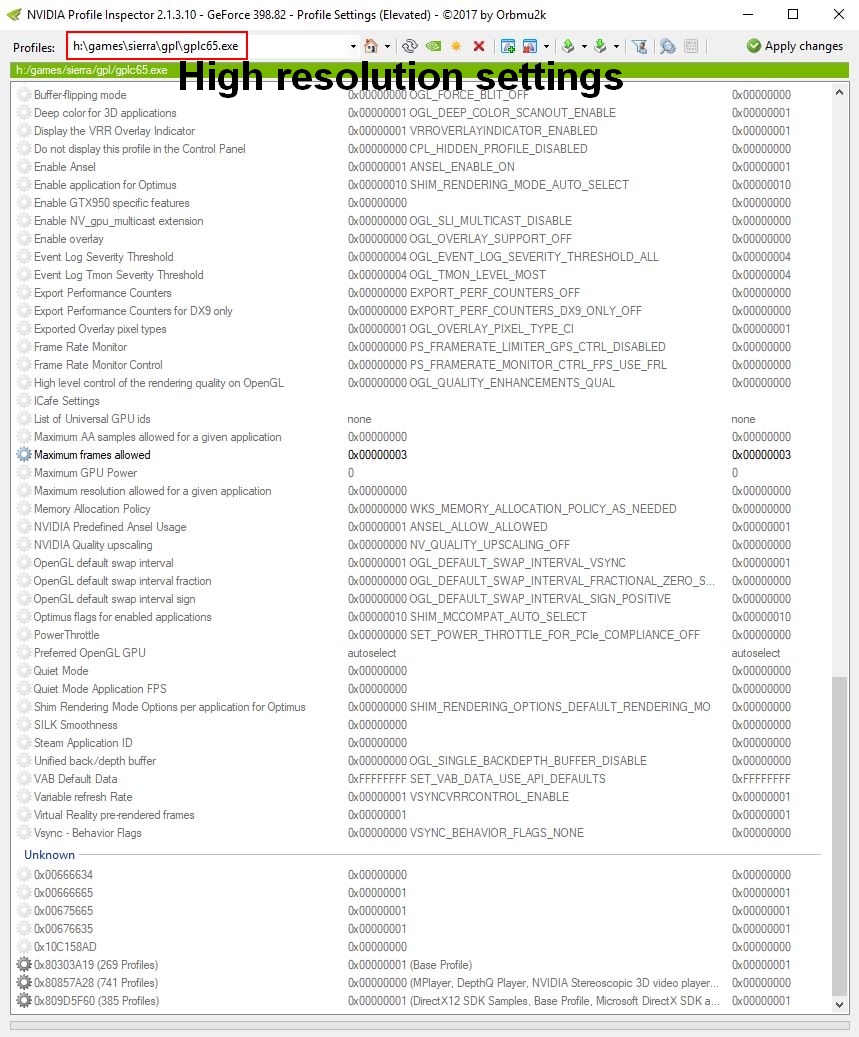

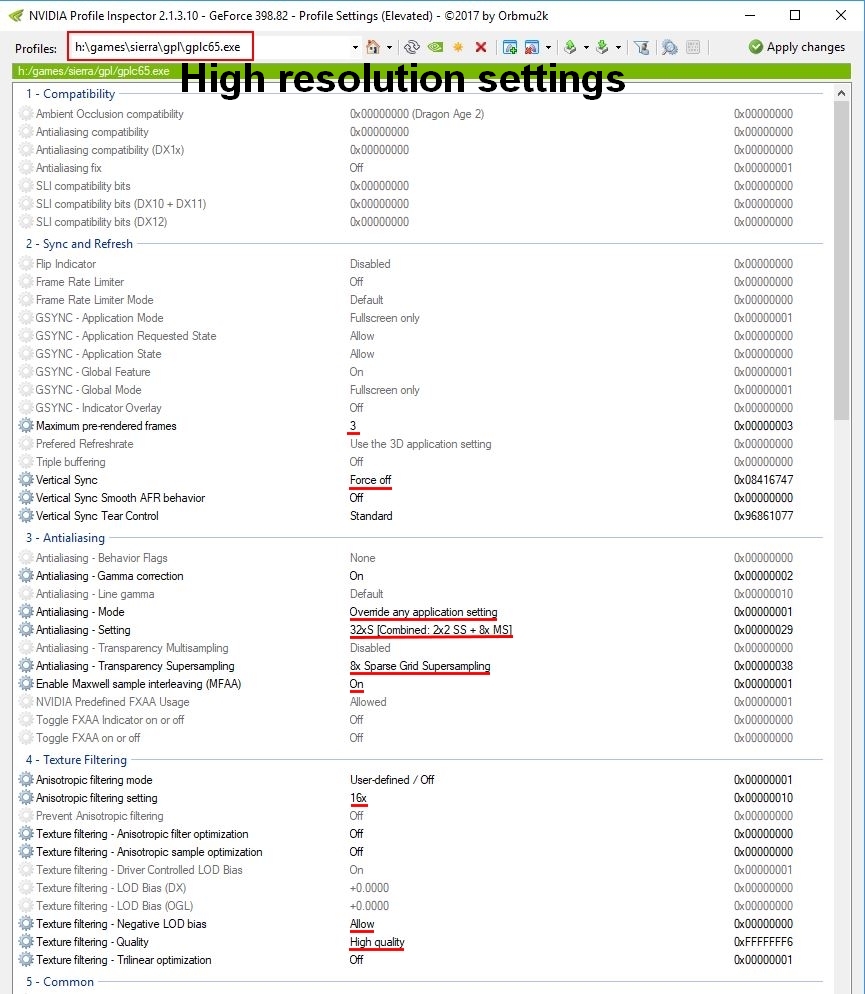

Below you can see now high-resolution graphics settings for a NVIDIA GeForce GTX 970 graphics card for the best possible graphics. These settings can cause frame rate drops on weaker PC systems.

In NVIDIA Profile Inspector you should set among other things "Texture filtering - Negative LOD Bias" to "Allow". For further hi-res settings see screenshots.

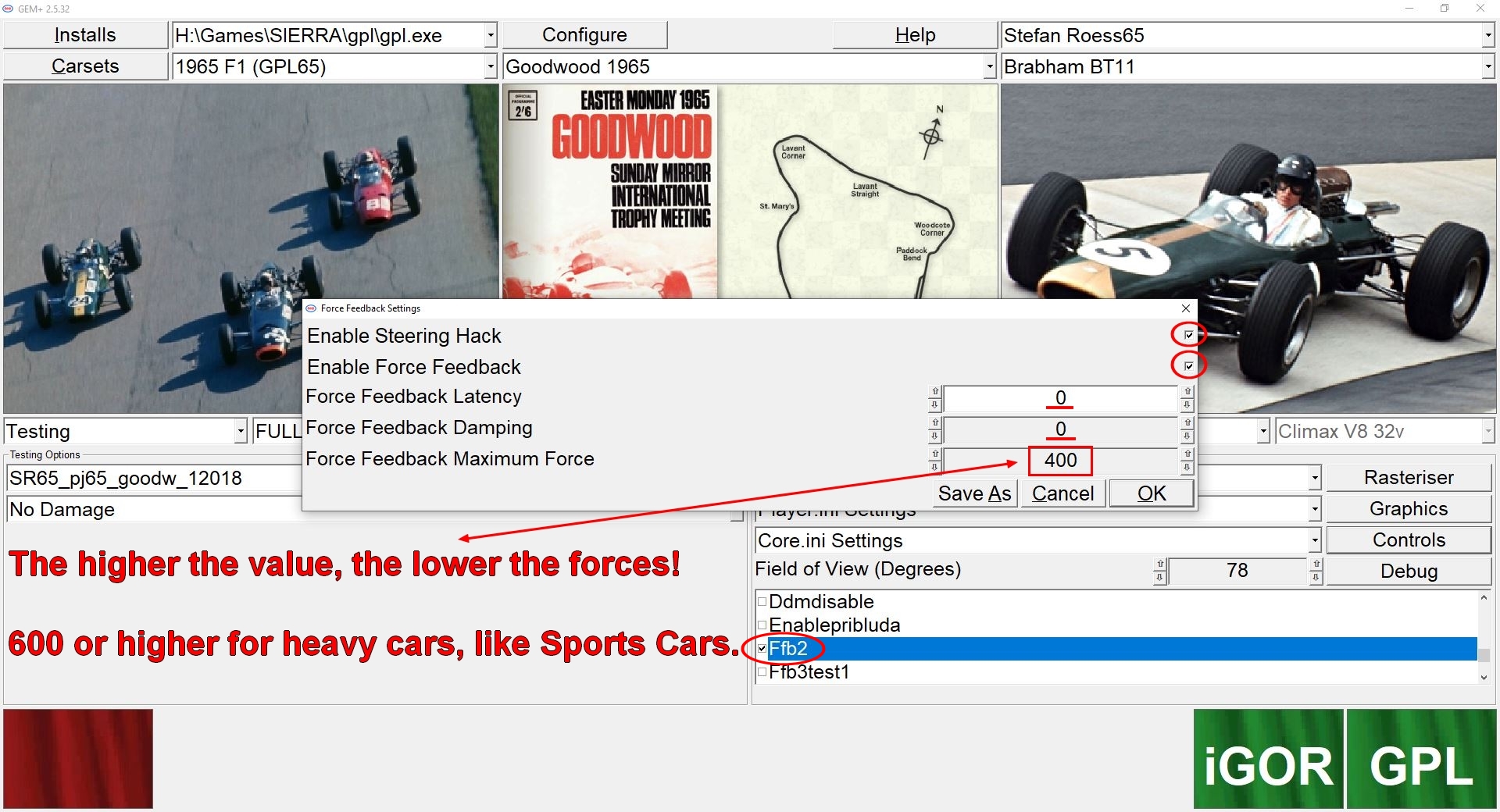

Set Force Feedback for your wheel in GEM+ via the button “Controls”.

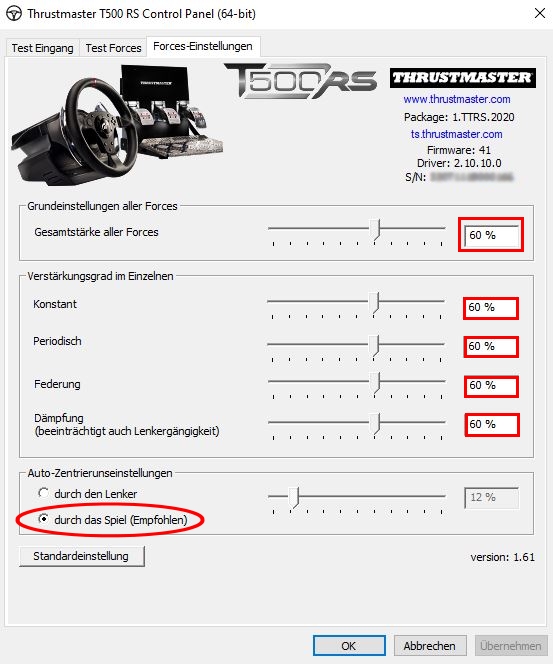

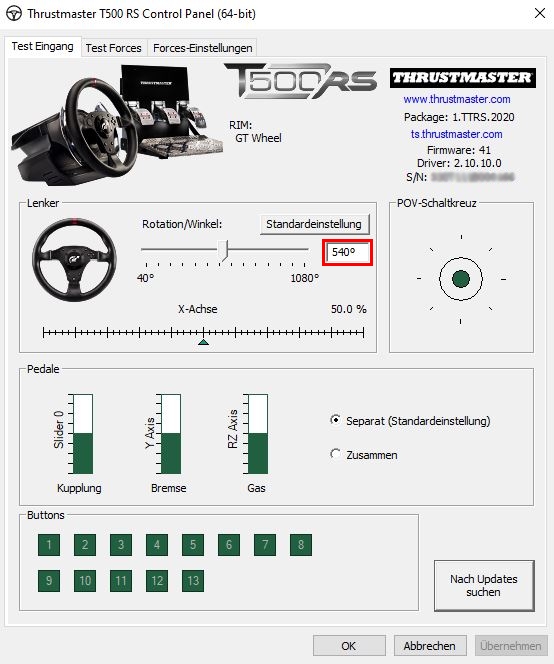

Note: The subsequent values for a Thrustmaster T500 RS wheel are just meant as a basis to start with! These values can be different from driver to driver and particularly for other wheels!

Set the “FF Maximum Force” value to 400 when using the FFB2 patch.
For details on the Force Feedback 2 patch, please go to 3.2.

The higher the value, the lower the force!

Use higher values (e.g. 600) for heavy cars such as Sportscars.


In GPL set the steering linearity at “Options“ to:


In GPL set the wheel “steering ratio” of your car setup to 8:1, 9:1 or 10:1.


Windows Game Controller settings for a Thrustmaster T500 RS wheel.

Note: I use these Windows Game Controller settings for the Thrustmaster T500 RS for all PC racing simulations, i.e. 360° rotation/angle and 60 % forces.



Note: As written before these values for a Thrustmaster T500 RS wheel are just meant as a basis to start with! These values can be different from driver to driver and particularly for other wheels!

3. Recommended GPL Updates and Patches

3.1. 4 GB Patch


If you are using a x64 (64-bit) PC system with at least 4 GB RAM (virtual memory) I recommend using the
4 GB Patch: http://www.ntcore.com/4gb_patch.php

Several GPL drivers have reported that the 4 GB Patch has a positive impact on their system. For example the demanding Spa67 track runs smoother.

3.2. Force Feedback v2 (FFB2) Patch


Here you get the Force Feedback v2 (FFB2) Patch by brr (Petteri Pajunen):
http://srmz.net/index.php?showtopic=4226

Note: This Easy Installation Guide does use the Force Feedback v2 Patch of brr (Petteri Pajunen). The Force Feedback and Wheel Settings of this guide are for the Force Feedback v2 Patch of brr (Petteri Pajunen).

3.3. 60 FPS Patch


The patch modifies GPL to run at a maximum 60 frames per second instead of the original maximum 36 frames per second.

Here you can download the 60 FPS patches by brr (Petteri Pajunen):

60fpsaiv1
http://srmz.net/index.php?showtopic=4402&#entry32107

60fpsv1
http://srmz.net/index.php?showtopic=3821

60fpsv2 / 60fpsv2newmod
http://srmz.net/index.php?showtopic=4584


The 60fpsv2newmod patch is preferred as it contains an FPS check. Unfortunately, this only prevents you from joining a 60fpsv2newmod server with 36 FPS. So if it flickers every 3-4 seconds when you are on a server, you can assume that you are either with 36 FPS on a 60 FPS server, or with 60 FPS on a 36 FPS server. Both are possible. Then please leave the server and enable/ disable in GEM+ the 60 FPS patch for the corresponding mod you want to run online.


GPL 1955 Mod -> 60fpsv2newmod
GPL 1965 Mod -> 60fpsv2newmod
GPL 1966 Mod -> 60fpsv2newmod
GPL 1967 Original -> 60fpsv2newmod
GPL 1967 Extra Mod/ Historical Mod -> 60fpsv2newmod
GPL 1967 Sportscars v2 Mod (SC) -> 60fpsv2newmod
GPL 1966 Can-Am Mod -> 60fpsv2newmod
GPL 1969 Mod -> 60fpsv2newmod
GPL 1971 Can-Am Mod -> 60fpsv2newmod
GPL F2 Mod (1967 Formula 2) -> 60fpsv2newmod
GPL Night Mod (N65/ N67) -> 60fpsv2newmod

GPL Stratos Mod (RX) -> 60fpsv2 (also works at Targa Florio)
GPL ThunderCars Mod (TC) -> 60fpsv2

GPL 1969 Extra Mod -> 60fpsv1
GPL 1967 Sportscars v1 Mod (GT) -> 60fpsv1


The 60fpsv1 patch works with every mod.

To drive with the AI you have to use the 60fpsaiv1 patch.

Remember to deactivate the 60 FPS Patch in GEM+, when you want to join a 36 FPS server at iGOR!

Tip: In GPL, put the appropriate 60 FPS patch into the respective "Options" folder of the mod, for the 65 mod for example in…\SIERRA\gpl\Mods\GEM+\gpl65\options

If you do not have an "Options" folder, create one.
In GEM +, you can activate and deactivate the appropriate 60 FPS patch.

3.4. Lee's GPL Motorworks Patches


I also recommend the patches of Lee's GPL Motorworks:
http://gplmotorworks.gplworld.de/

For example:

  • GPL Head Movement Patch:
    Moves the driver's head in reaction to steering forces.
  • GPL No Letterbox Patch:
    Removes the top and bottom black bars for a larger viewing area.


Tip: Install these patches in GPLSecrets in the folder „Options“ (…\GPLSecrets\GEM+\Options\...)
You can then activate and deactivate these in GEM + for each mod individually.

3.5. Spa67


Install the track Spa67 which has been built from scratch:
http://spa67.gplworld.de/

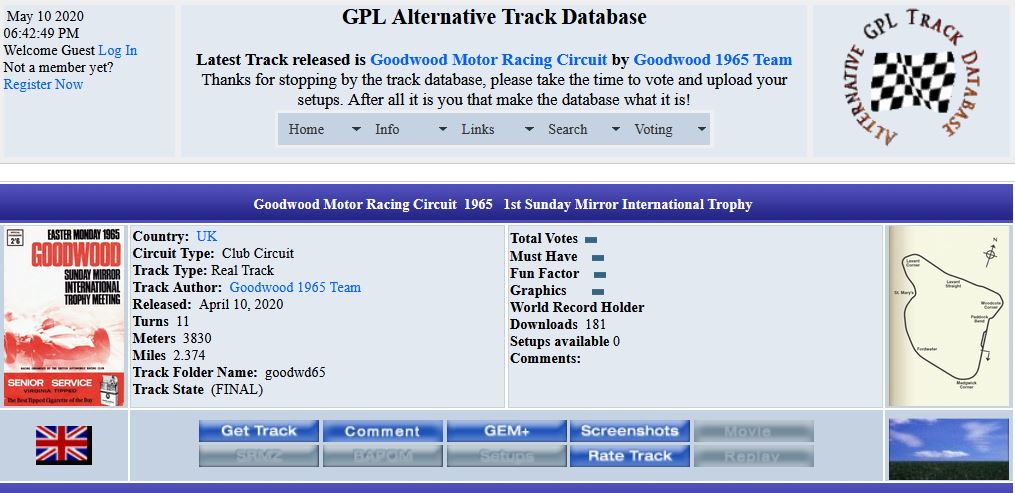

More tracks can be found at the GPL Alternative Track Database (GPLTD):
http://gpltd.bcsims.com/

3.6. GPL Replay Analyzer (GPLRA)


Here you can download the latest version of the GPL Replay Analyzer by Martin Granberg:
gplra_791_beta2
http://srmz.net/index.php?showtopic=6319&st=60#entry68958

GPL Replay Analyser is a program with which you can load up your Grand Prix Legends replays and analyse/ compare driving lines and different kinds of "telemetry". You can replay the races to see how it developed and generate race reports, practice reports and various statistics.

You can select up to five different laps. It doesn't matter if the driver of the lap is a local human, AI-car, multiplayer human nor in what kind of session the lap was set. GPL Replay Analyser supports all tracks.

Furthermore you'll find lots of different tools and features in GPL Replay Analyser.
For further details please go to http://gplra.martingranberg.se/


4. GPL Links


GPL Links
http://www.gpllinks.org/


SimRacingMirrorZone (SRMZ)
http://srmz.net/


GPL FAQ & Troubleshooting Guide
http://srmz.net/index.php?showtopic=3714


Grand Prix Legends Wiki
http://wiki.grandprixlegends.info


GPL Alternative Track Database (GPLTD)
http://gpltd.bcsims.com/


GPL Secrets (GEM+ & iGOR)
http://gem.autosimsport.net/


GPLPS`s Blog
http://gplps.wordpress.com/


GPL Mods & Patches
http://gpltd.bcsims.com/?ir=Mods


Lee's GPL Motorworks
http://gplmotorworks.gplworld.de/


GPLWORLD [German]
http://www.gplworld.de


GPLWORLD [English]
http://www.gplworld.de/en


GPLWORLD YouTube Channel
http://www.youtube.com/user/TheSimMagazine/videos


Empfohlenes Fahrer Verhalten [German]
http://www.gplworld.de/grand-prix-legends/gpl-fahrer-verhalten


Recommended Driver Behaviour [English]
http://wiki.grandprixlegends.info/index.php?title=GPL_Recommended_Driver_Behaviour


GPLRACER - GPL Mods Online Racing League [German/ English]
http://www.gplracer.eu


GPL Weekly
http://www.freeleo.hu/weekly/


Thanks to the GPL mod team for their support in creating this guide.
Thanks to SV3000 for the draft of the GPL 2004 Demo guide.



GPLWORLD

We will be back soon – promised

REDAXO 5 rocks!
